- BOARDS ARE A DIRECT "PLUG IN" REPLACEMENT FOR THE ECI-1000 AND ECI-895 RESPECTIVELY.

- USING  ONLY  1 RELAY  FOR  MAIN  DRIVE .

- MOTOR SPEED OR TORQUE CAN BE PRE-SET.

- ON SITE TROUBLE SHOOTING VIA CODE ILLUMINATED LEDs.

- ADJUSTABLE CLOSING TORQUE TO COMBAT WIND PRESSURE NEAR THE END OF  CLOSING  CYCLE.

- FULL BRAKE FUNCTION TO REDUCE HIGH CLOSING SPEED NEAR THE END OF  THE CLOSING  CYCLE.

- DOOR LOCKING FUNCTION REGARDLESS IF LOCK SIGNAL IS RECEIVED FROM MAIN C.P

- ADJUSTABLE RE-OPEN CYCLE START TIME.

- ALL OPERATING FUNCTIONS ARE CONTROLLED BY MICRO-PROCESSOR.

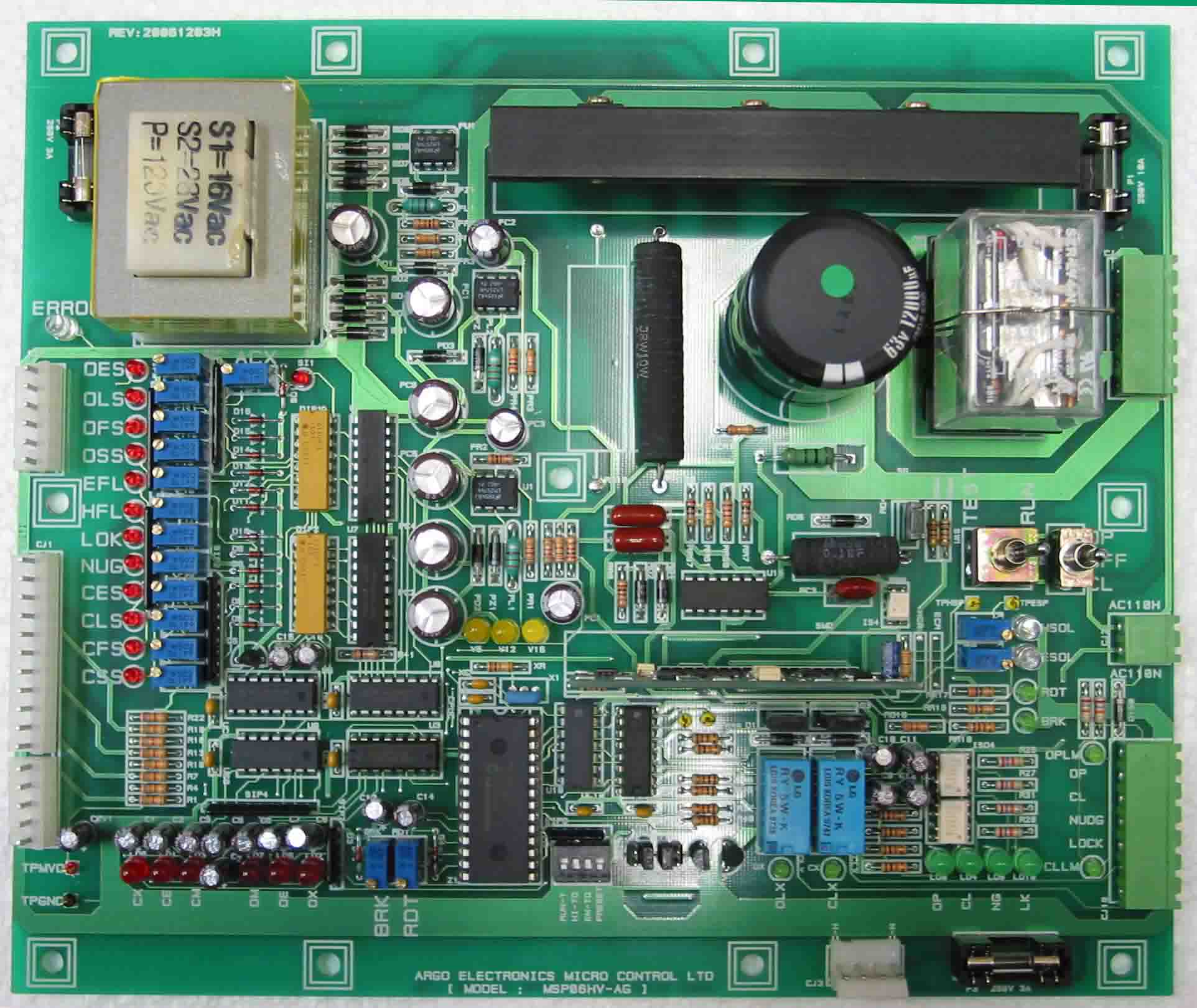

P/N for Order   :   AG 1000-HV

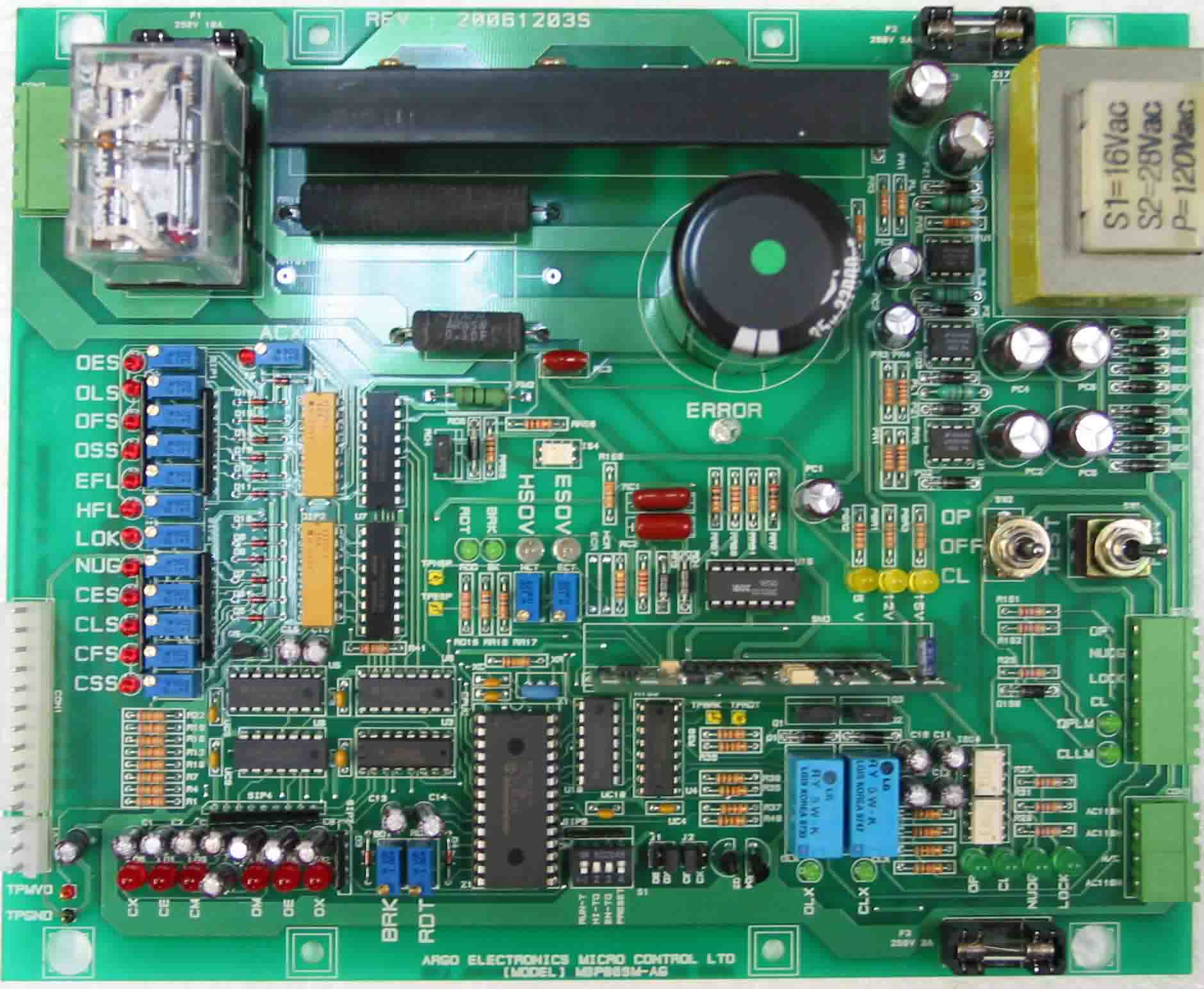

P/N for Order    :    AG 895-SM
